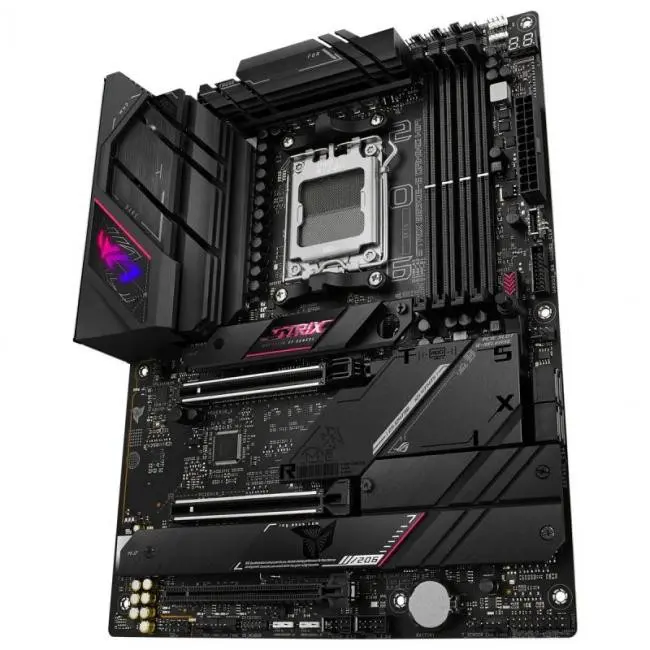

ASUS ROG STRIX B650E-E GAMING WIFI

Placa base ASUS ROG Strix B650E-E Gaming WiFi AMD Ryzen AM5 ATX, 16 + 2 etapas de potencia, DDR5, cuatro ranuras M.2, PCIe® 5.0, WiFi 6E, LAN de 2,5 Gb, puerto de E/S trasero USB 3.2 Gen 2×2 tipo C® y Aura Sync RGB.

• Zócalo AMD AM5: preparado para los procesadores de sobremesa AMD Ryzen™ serie 7000.
• Solución de alimentación sólida: 16 + 2 etapas de potencia agrupadas con conectores de alimentación ProCool duales, bobinas de aleación de gran calidad y condensadores duraderos para soportar procesadores multinúcleo.
• Diseño térmico optimizado: enormes disipadores térmicos con canales de flujo de aire cortados estratégicamente y unidos a las etapas de alimentación con almohadillas térmicas de alta conductividad.
• Compatibilidad con M.2 de nueva generación: dos ranuras PCIe® 5.0 M.2 y dos ranuras PCIe 4.0 M.2 cubiertas con disipadores térmicos para conseguir el máximo rendimiento.
• Completa conectividad: puerto y conector en el panel frontal USB 3.2 Gen 2×2 tipo C®, once puertos USB adicionales, dos PCIe 5.0 x16 SafeSlot, HDMI® 2.1 y DisplayPort™ 1.4.
• Red de alto rendimiento: WiFi 6E (802.11ax) integrado en placa, Bluetooth® 5.2 y Ethernet Intel® de 2,5 Gb con ASUS LANGuard.
• Control inteligente: AI Networking y Cancelación de ruido bidireccional con IA, tecnologías exclusivas de ASUS, para simplificar la configuración y mejorar el rendimiento.
• Audio gaming inmersivo: ALC4080 con amplificador Savitech SV3H712, junto con DTS® Sound Unbound y Sonic Studio III.
• Personalización inigualable: iluminación RGB Aura Sync exclusiva de ASUS, incluido un cabezal RGB y tres cabezales Gen 2 direccionables.
• Diseño práctico para personalización: ranura PCIe Q-Release, M.2 Q-Latch, escudo de E/S premontado, botón BIOS FlashBack™ y botón Clear CMOS.
• Software intuitivo: panel de control UEFI BIOS fácil de usar, Armoury Crate para gestionar todos los dispositivos ASUS desde el mismo sitio y suscripción de prueba a AIDA64 Extreme durante 60 días incluida.

Especificaciones:

•  CPU
  • AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
  • * Refer to www.asus.com for CPU support list.
• Chipset
  • AMD B650
• Memory
  • 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports AMD® EXTended Profiles for Overclocking (EXPO™)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  • * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
• Graphics
  • 1 x DisplayPort*
  • 1 x HDMI® port**
  • * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • **Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  • AMD Ryzen™ 7000 Series Desktop Processors*
  • 2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)**
  • AMD B650 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
  • ** When M.2_3 is occupied with SSD device, PCIEX16_1 will run x8 only.
• Storage
  • Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
  • AMD Ryzen™ 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • AMD B650 Chipset
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports**
  • *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10.
  • **RAID configuration is not supported on the SATA6G_E1-4 ports.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6E
  • 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth v5.2
  • * WiFi 6E 6GHz regulatory may vary between countries.
• USB
  • Rear USB (Total 12 ports)
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
  • 4 x USB 2.0 ports
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • – Impedance sense for front and rear headphone outputs
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • – Supports up to 32-Bit/384 kHz playback
  • Audio Features
  • – Audio Shielding
  • – Savitech SV3H712 AMP
  • – Rear optical S/PDIF out port
  • – Premium audio capacitors
  • – Audio cover
• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2×2 port (1 x Type-C®)
  • 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x  USB Type-C®)
  • 4 x USB 2.0 ports
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™  button
  • 1 x Clear CMOS button
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connector
  • Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™  header
• Special Features
  • Extreme Engine Digi+
  • – 5K Black Metallic Capacitors
  • ASUS Q-Design
  • – M.2 Q-Latch
  • – PCIe Slot Q-Release
  • – Q-DIMM
  • – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • – Q-Slot
  • ASUS Thermal Solution
  • – M.2 heatsinks
  • – VRM heatsink design
  • ASUS EZ DIY
  • – BIOS FlashBack™ button
  • – BIOS FlashBack™ LED
  • – Clear CMOS button
  • – ProCool
  • – Pre-mounted I/O shield
  • – SafeSlot
  • – SafeDIMM
  • AURA Sync
  • – AURA RGB header
  • – Addressable Gen 2 headers
• Software Features
  • ROG Exclusive Software
  • – GameFirst VI
  • – ROG CPU-Z
  • – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  • – Sonic Radar III
  • – DTS® Sound Unbound
  • – Anti-virus software
• ASUS Exclusive Software
  • Armoury Crate
  • – AIDA64 Extreme (60 days free trial)
  • – AURA Creator
  • – AURA Sync
  • – Fan Xpert 4
  • – Power Saving
  • – Two-Way AI Noise Cancellation
  • AI Suite 3
  •   TPU
  •   DIGI+ VRM
  •   Turbo app
  •   PC Cleaner
  • MyAsus
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
  • Dynamic OC Switcher
  • FlexKey
• BIOS
  • 256 Mb  Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE

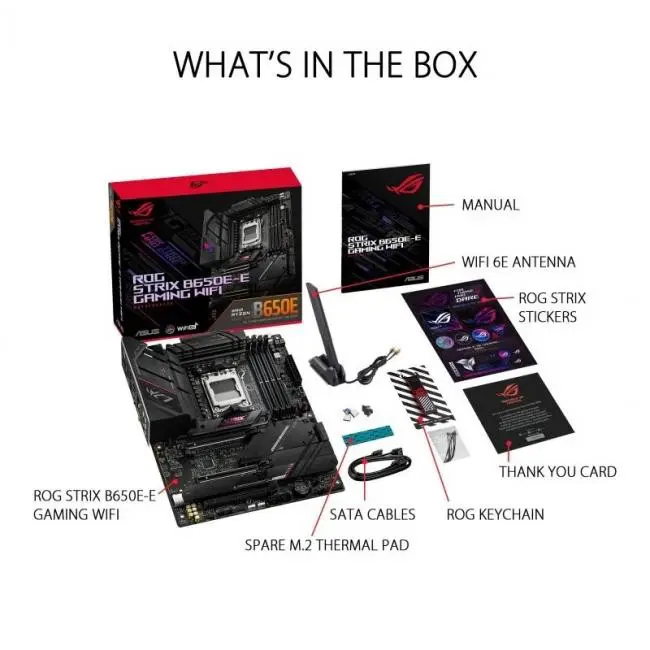

• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Additional Cooling Kit
  • 1 x Thermal pad for M.2
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x M.2 Q-Latch package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
  • 2 x Rubber Packages for M.2
• Documentation
  • 1 x User guide
• Operating System
  • Windows® 10 64-bit, Windows® 11 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
