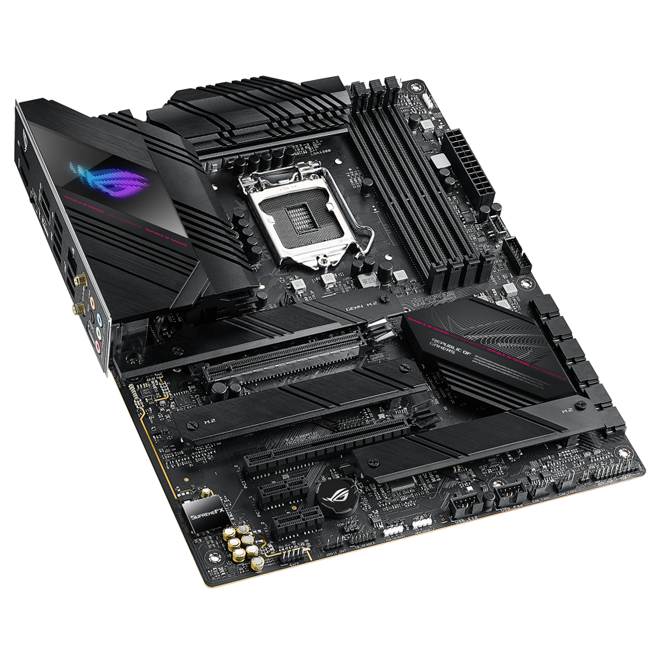

ASUS ROG STRIX B560-E GAMING WIFI

A medida que el modelo insignia de la serie B560, B560 Strix ROG-E juego WiFi ofrece todo lo necesario para crear un sistema de juego bien equilibrado que utiliza 11 º Intel Generación ® procesadores Core ™. Cuenta con una entrega de energía robusta y el último estándar de red WiFi 6E que se encuentra más comúnmente en las placas de la serie Z590 de gama alta, y está listo para las últimas tarjetas gráficas y configuraciones de almacenamiento de alta velocidad. Esta placa base también incluye mejoras como utilidades infundidas con IA para llevar el rendimiento más allá de la corriente principal. Como toque final, la estética futurista acentuada por la iluminación RGB personalizable le permite hacer que la construcción sea exclusivamente suya.

Intel ® B560 LGA 1200 placa base ATX con PCIe ® 4,0, 14 + 2 unido etapas de potencia, de dos vías AI ruido de cancelación, WiFi 6E (802.11ax), Intel 2,5 Gb Ethernet, tres M.2 ranuras con disipadores de calor y el apoyo NVMe SSD, USB 3.2 Gen 2×2 USB Type-C ® , iluminación SATA y Aura Sync RGB

• Intel ® : LGA 1200 Socket listo para el 11 de generación de procesadores Intel® Core ™ , 10 Gen Intel Core, Pentium ® Oro y Celeron ® procesadores
• Solución de potencia sólida: etapas de potencia en equipo con conector de alimentación ProCool, bobinas de aleación de alta calidad y condensadores duraderos para admitir procesadores de varios núcleos
• Redes de alto rendimiento: Intel WiFi 6E (802.11ax) integrado e Intel 2.5 Gb Ethernet con ASUS LANGuard
• La mejor conectividad para juegos: admite salida HDMI ® 2.0 y DisplayPort 1.4, tres ranuras M.2 y USB 3.2 Gen 2×2 Type-C ®
• Diseño amigable para el bricolaje: M.2 Q-Latch, protector de E / S premontado, BIOS FlashBack ™ y Q-LED
• Personalización incomparable: iluminación Aura Sync RGB exclusiva de ASUS, que incluye encabezados direccionables RGB y Gen 2
• Audio para juegos líder en la industria: ALC4080 con amplificador Savitech SV3H712, junto con DTS ® Sound Unbound y Sonic Studio III
• Software de renombre: paquete de 60 días de suscripción a AIDA64 Extreme y panel de control UEFI BIOS intuitivo

Especificaciones

• CPU
• Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
• Intel® B560 Chipset
• Memory
• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
• * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
• Graphics
• 1 x DisplayPort 1.4
• 1 x HDMI™ 1.4 / 2.0***
• * Graphics specifications may vary between CPU types.
• **Only Intel® 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update.
• *** Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
• Expansion Slots
• Intel® 11th&10th Gen Processors
• 1 x PCIe 4.0/3.0 x16 slot(s)
• – Intel® 11th processors support PCIe 4.0 x16 mode
• – Intel®10th processors support PCIe 3.0 x16 mode
• Intel® B560 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 2 x PCIe 3.0 x1 slots
• * The PCIEX16_2 shares bandwidth with the M.2_2. When M.2_2 runs x4 mode, PCIEX16_2 will be disabled.
• Storage
• Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
• Intel®11th Gen Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110
• – Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
• Intel® B560 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)**
• 6 x SATA 6Gb/s ports
• * The M.2_2 share bandwidth with PCIEX16_2. When PCIEX16_2 runs x4 mode, M.2_2 can’t run PCIE mode (when M.2_2 runs at SATA mode, SATA6G_1 will be disabled)
• ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
• Wireless & Bluetooth
• Intel® Wi-Fi 6E
• 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2 hardware ready**
• * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later.
• ** Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or later.
• USB
• Rear USB (Total 10 ports)
• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 5 x USB 2.0 ports (4 x Type-A, 1 x audio USB Type-C®)
• Front USB:
• Total 7 ports
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C®)
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Audio
• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• – Impedance sense for front and rear headphone outputs
• – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• – Supports up to 32-Bit/384 kHz playback
• Audio Features
• – SupremeFX Shielding Technology
• – ALC4080 + Savitech SV3H712 AMP
• – Rear audio USB Type-C® port
• – Premium Japanese audio capacitors
• – Audio cover
• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

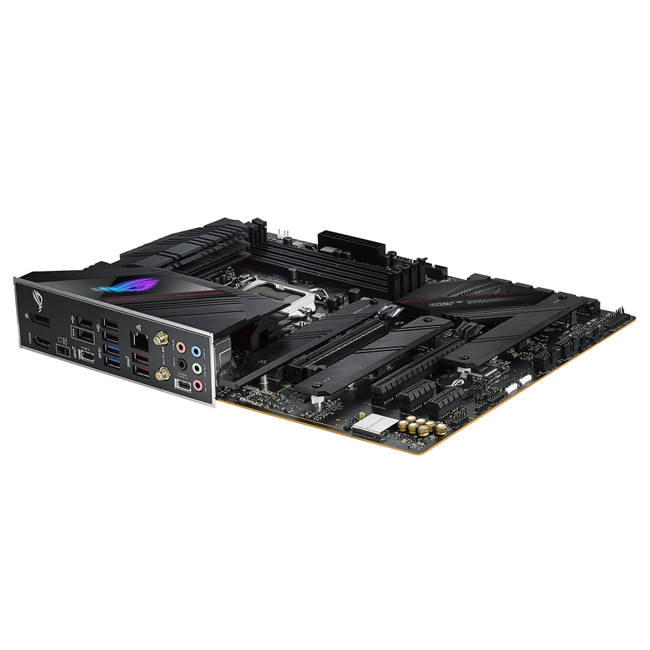

• Back Panel I/O Ports
• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
• 2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
• 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®)
• 1 x HDMI™ port
• 1 x DisplayPort
• 1 x ASUS Wi-Fi Module
• 1 x Intel® I225-V 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button
• Intrernal I/O Connectors
• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 3 x 4-pin Chassis Fan header(s)
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Miscellaneous
• 2 x AURA Addressable Gen 2 header(s)
• 2 x AURA RGB header(s)
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-5 pin System Panel header
• 1 x Thunderbolt™ header
• 1 x S/PDIF Out header
• Special Features
• Extreme Engine Digi+
• – 5K Black Metallic Capacitors
• ASUS Q-Design
• – M.2 Q-Latch
• – Q-DIMM
• – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• – Q-Slot
• ASUS Thermal Solution
• – M.2 heatsink
• ASUS EZ DIY
• – BIOS FlashBack™ button
• – BIOS FlashBack™ LED
• – ProCool
• – Pre-mounted I/O shield
• – SafeSlot
• AURA Sync
• – AURA RGB header(s)
• – Addressable Gen 2 RGB header(s)
• Software Features
• ROG Exclusive Software
• – RAMCache III
• – ROG CPU-Z
• – GameFirst VI
• – Sonic Studio III + Sonic Studio Virtual Mixer
• – Sonic Radar III
• – DTS® Sound Unbound
• – Overwolf
• – Anti-virus software
• ASUS Exclusive Software
• Armoury Crate
• – AIDA64 Extreme (60 days free trial)
• – AURA Creator
• – AURA Sync
• – Two-Way AI Noise Cancelation
• AI Suite 3
• – Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert 4
• – EZ update
• MyAsus
• WinRAR
• DAEMON Tools
• UEFI BIOS
• ASUS EZ DIY
• – ASUS CrashFree BIOS 3
• – ASUS EZ Flash 3
• – ASUS UEFI BIOS EZ Mode
• BIOS
• 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
• WOL by PME, PXE
• Accessories
• Cables
• 4 x SATA 6Gb/s cables
• 1 x ROG audio USB Type-C® cable
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x ROG Graphics card holder
• 1 x M.2 Q-Latch package
• 2 x M.2 Rubber Packages
• 1 x ROG key chain
• 1 x ROG STRIX stickers
• 1 x ROG STRIX thank you card
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User manual
• Operating System
• Windows 10 64bit
• Form Factor
• ATX
• 30.5cm x 24.4cm
