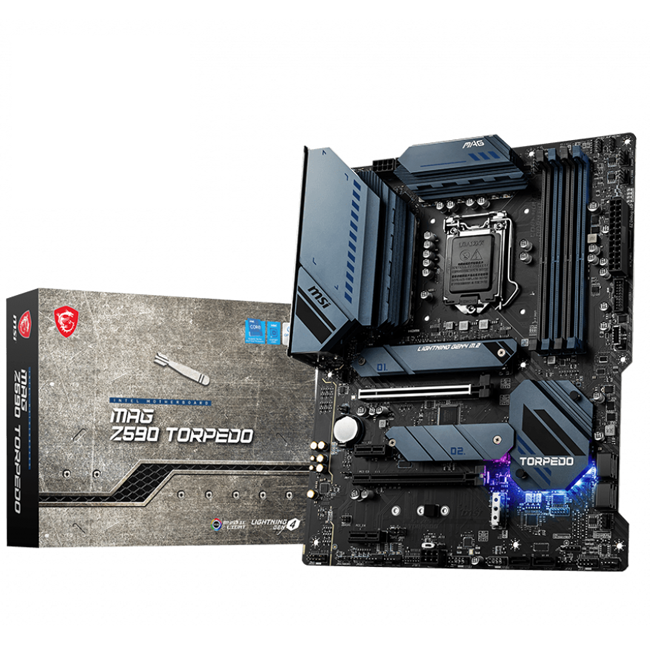

MSI MAG Z590 torpedo

Con años de experiencia, MSI no es ajeno a la construcción de placas base de alto rendimiento. Nuestros equipos de I + D e ingeniería han revisado innumerables diseños, evaluado una amplia selección de componentes de alta calidad y desarrollado productos para garantizar su confiabilidad incluso en condiciones extremas.

Características

• Soportes 10º Gen Intel ® Core ™, 11 Gen Intel ® Core ™, Pentium ® Gold y Celeron ® procesadores LGA 1200 para socket
• Admite memoria DDR4, hasta 5333 (OC) MHz
• Solución térmica premium: el diseño de disipador de calor extendido y M.2 Shield Frozr están diseñados para un sistema de alto rendimiento y trabajos continuos
• La última solución de red: la LAN de 2.5G incorporada más la LAN Gigabit con LAN Manager brindan la mejor experiencia en línea sin demoras
• Lightning M.2: la ejecución en PCIe Gen4 x4 maximiza el rendimiento de los SSD basados en NVMe
• Lightning USB 20G: alimentado por un controlador USB 3.2 Gen2x2, que ofrece velocidades USB nunca antes vistas de hasta 20 Gb / s con USB Type-C
• AUDIO BOOST 5: recompense sus oídos con calidad de sonido de estudio para la experiencia de juego más envolvente
• Multi-GPU: con ranuras PCIe de armadura de acero. Admite AMD Crossfire ™ de 2 vías

• PROCESSOR
• Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
• Processor socket LGA1200
• CHIPSET
• Intel® Z590 Chipset
• MEMORY
• 4x DDR4 memory slots, support up to 128GB 1
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
• Max overclocking frequency:
• 1DPC 1R Max speed up to 5333 MHz
• 1DPC 2R Max speed up to 4700+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
• Please refer to www.msi.com for more information on compatible memory.
• See supported memory
• EXPANSION SLOT
• 2x PCIe x16 slots
• 1x PCIe 3.0 x16 slot (from CPU)
• Support up to PCIe 4.0 for 11th Gen Intel® CPU
• Support up to PCIe 3.0 for 10th Gen Intel® CPU
• PCI_E3 (From Z590 chipset)
• Support up to PCIe 3.0 x4
• 2x PCIe 3.0 x1 slots (From Z590 chipset)
• MULTI-GPU
• Supports 2-Way AMD® CrossFire™ Technology
• ONBOARD GRAPHICS
• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1 / 2
• Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
• STORAGE
• 6x SATA 6Gb/s ports (From Z590 chipset) 1
• 3x M.2 slots (Key M)
• M2_1 slot (From CPU)
• Available only on 11th Gen Intel® CPU
• Supports up to PCIe 4.0 x4
• Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_21 & M2_3 2 slot (From Z590 chipset)
• Supports up to PCIe 3.0 x4
• Supports SATA up to 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• Intel® Optane™ Memory Ready 3
• Supports Intel® Smart Response Technology for Intel Core™ processors
• SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
• RAID
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
• USB
• Intel® Z590 Chipset
• 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
• 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
• 1x USB 2.0 Type-A port on the back panel
• Hub-GL850G
• 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
• AUDIO
• Realtek® ALC4080 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output
• LAN
• 1x Intel® I225-V 2.5Gbps LAN controller
• 1x Intel® I219-V 1Gbps LAN controller
• INTERNAL CONNECTORS
• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x 6-pin PCIE power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Clear CMOS jumper
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector
• LED FEATURE
• 1x EZ LED Control switch
• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED
• BACK PANEL PORTS
• DisplayPort
• USB 2.0
• Gigabit LAN Port
• 2.5G LAN Port
• HD Audio Connectors
• HDMI
• Flash BIOS Button
• USB 3.2 Gen 1 5Gbps Type-A
• USB 3.2 Gen 1 5Gbps Type-A
• USB 3.2 Gen 2 10Gbps Type-A
• USB 3.2 Gen 2×2 20Gbps Type-C
• Optical S/PDIF OUT
• DIMENSIONS
• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• OPERATING SYSTEM
• Support for Windows® 10 64-bit
