CPU | INTEL |
---|---|
Support du processeur | 1200 |
Chipset | INTEL Z490 |
Type de connecteur | USB 3.2 |
Type de connexion | BLUETOOTH , HDMI , LAN , WIFI |
Format de carte mère | ATX |
Type de mémoir | DDR4 |

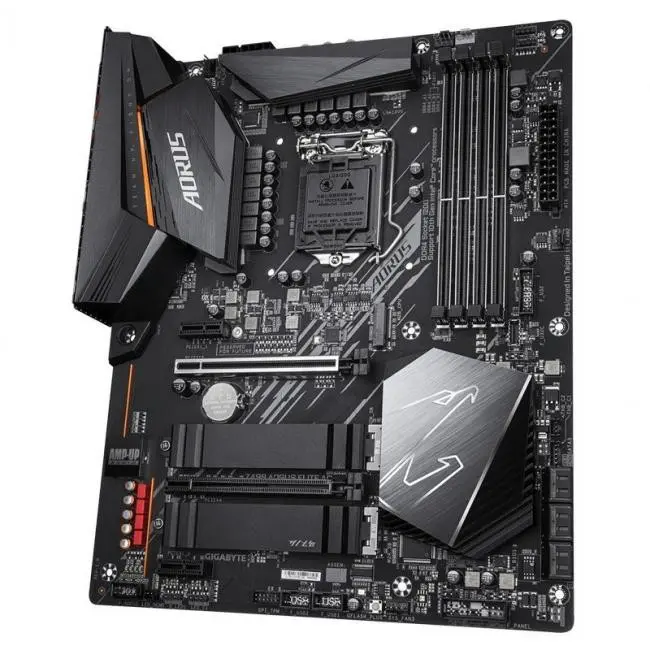

Gigabyte Z490 Aorus Elite AC
3863 Dhs Le prix initial était : 3863 Dhs.2235 DhsLe prix actuel est : 2235 Dhs.
Rupture de stock
P/N: GAZ49ELTA-00-G EAN: 4719331808563 Code de l'article: A207433 Catégorie affecté: Cartes mére PC, Composants
Rupture de stock
27 Personnes en train de regarder ce produit!
Fragmentos del Vacío; Los bordes desaparecen Fusionando diferentes materiales y texturas superficiales con espacio negativo para formar una yuxtaposición y mostrar un efecto estilístico donde los límites entre los componentes no están claramente definidos. Crea un diseño multidimensional que aparentemente atraviesa el espacio y el tiempo.
Intel® Z490 AORUS Motherboard with Direct 12+1 Phases Digital VRM Design, Comprehensive Thermal Solution with Enlarged Surface Heatsink, Intel® Dual Band 802.11ac WIFI, 2.5GbE LAN, RGB FUSION 2.0
- Supports 10th Gen Intel® Core™ Series Processors
- DDR4 Dual Channel Non-ECC Unbuffered , 4 DIMMs
- Memoria Intel® Optane™
- Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Advanced Thermal Design with Enlarged Surface Heatsink
- Onboard Intel® Dual Band 802.11ac WIFI & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1200 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
- Pre-installed IO Shield for Easy and Quick Installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips
- Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Especificaciones
- Procesador
- Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
- Caché L3 varía según la CPU
(Por favor, acuda a “lista de soporte de CPU” para más información.)
- Chipset
- Intel® Z490 Express Chipset
- Memoria
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Arquitectura de memoria Dual Channel
- Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
- * To support 3200 MHz, you must use XMP memory.
- Soporte para módulos de memoria ECC Un-buffered UDIMM 1Rx8/2Rx8 (operando en modo no-ECC)
- Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
- Soporte para módulos de memoria Extreme Memory Profile (XMP)
(Por favor diríjase a la “Lista de memorias soportadas” para más información.)
- Gráfica IntegradaProcesador gráfico integrado – Soporte Intel® HD Graphics:
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Máxima memoria compartida de 512 MB
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
- Audio
- Realtek® ALC1200 codec
- Audio de alta definición
- 2/4/5.1/7.1-channel
- Soporte para salida S / PDIF
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
- Módulo de comunicaciones inalámbricasIntel® Wi-Fi AC 9462:
- Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5
- Support for 1×1 11ac wireless standard and up to 433 Mbps data rate
- * La tasa de datos real puede variar según el equipo y el entorno.
- Zócalos de Expansión
- 1 x slot PCI Express x16 a x16 (PCIEX16)
* Si únicamente va a instalar una tarjeta gráfica PCI Express, para un rendimiento
óptimo, asegúrese de que esté colocada en el slot PCIEX16. - 1 x PCI Express x16, a x4 (PCIEX4)
- 2 x PCI Express x1 slots
- (Todos los slots PCI Express conforman el estandar PCI Express 3.0)
Supports up to ASPM L1.2 power management protocols.
- 1 x slot PCI Express x16 a x16 (PCIEX16)
- Interfaz de almacenamiento
- 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB/M2A_SB)
- 6 x SATA 6Gb/s connectors
- Soporta RAID 0, RAID 1, RAID 5, y RAID 10
- * Consulte “1-7 Conectores internos” para obtener los avisos de instalación de los conectores M.2 y SATA.
- Memoria Intel® Optane™
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
- Tecnología Multi Gráfica
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
- USBChipset+2 USB 2.0 Hubs:
- 8 x puertos USB 2.0/1.1 (4 puertos en el panel posterior, 4 puertos disponibles a través de los conectores USB internos)
Chipset:
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Conectores Internos E/S
- 1 x conector de alimentación principal ATX 24-pin
- 1 x conector de alimentación ATX 12V 8-pin
- 1 x 4-pin ATX 12V power connector
- 2 x conectores M.2 Socket 3
- 6 x conector SATA 6Gb/s
- 1 x conector del ventilador de la CPU
- 1 x conexión del ventilador para refrigeración por agua
- 3 x conector del ventilador del sistema
- 2 x Addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x conector del panel frontal
- 1 x conector de audio en el panel frontal
- 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x conectores USB 2.0/1.1
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
La función TPM es opcional según las diferentes políticas locales - 2 x Thunderbolt™ add-in card connectors
- 1 x Clear CMOS jumper
- 1 x Q-Flash Plus button
- Panel E/S Trasero
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x puertos USB 2.0/1.1
- 2 x SMA antenna connectors (1T1R)
- 1 x HDMI
- 1 x Puerto RJ-45
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
- Controlador E/S
- Chip controlador E/S iTE®
- Monitorización Hardware
- Detección de voltaje
- Detección de temperatura
- Detección de la velocidad del ventilador
- Water cooling flow rate detection
- Advertencia de sobrecalentamiento
- Aviso en caso de fallo en el ventilador
- Control de la velocidad del ventilador
- * Whether the fan speed control function is supported will depend on the fan you install.
- BIOS
- 1 x 256 Mbit flash
- Licencia para uso de UEFI BIOS de AMI
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features
- Otras Características
- Soporte para APP Center
* Las aplicaciones disponibles en la App Center pueden variar según el modelo de placa base. Las funciones compatibles de cada aplicación también pueden variar dependiendo de las especificaciones de la placa base.
@ BIOS ™
EasyTune
Fast Boot
Boost en los juegos
Soporta ON/OFF Charge
RGB Fusion
Smart Backup
Visor de información del sistema - Soporte Q-Flash Plus
- Soporte para Q-Flash
- Soporta Xpress Install
- Soporte para APP Center
- Bundled Software
- Norton® Internet Security (versión OEM)
- Realtek® 8125 Gaming LAN Bandwidth Control Utility
- Sistema Operativo
- Support for Windows 10 64-bit
- Formato
- Factor de forma ATX, 30.5cm x 24.4cm
CPU | INTEL |
---|---|
Support du processeur | 1200 |
Chipset | INTEL Z490 |
Type de connecteur | USB 3.2 |
Type de connexion | BLUETOOTH , HDMI , LAN , WIFI |
Format de carte mère | ATX |
Type de mémoir | DDR4 |
