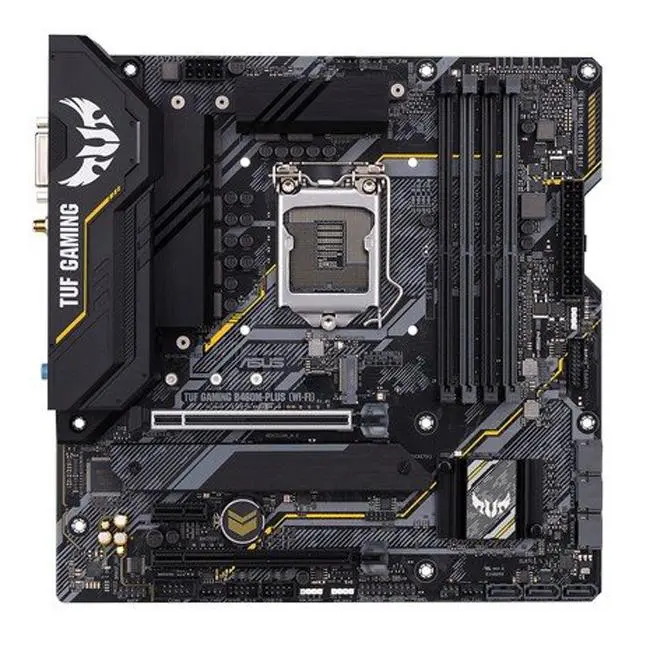

ASUS TUF GAMING B460M-PLUS (WI-FI)

TUF Gaming B460M-PLUS (Wi-Fi) destila elementos esenciales de la última plataforma Intel® y los combina con características listas para el juego y durabilidad comprobada. Diseñada con componentes de grado militar, una solución de energía mejorada y un conjunto completo de opciones de enfriamiento, esta placa base ofrece un rendimiento sólido con una estabilidad inquebrantable en los juegos.

Cuando construye con una placa base TUF Gaming, también se beneficia de la TUF Gaming Alliance, una colaboración de ASUS con socios de la industria de confianza que garantiza una construcción más fácil, la mejor compatibilidad y una estética complementaria de los componentes a la carcasa.

Placa base micro ATX Intel® B460 (LGA 1200) para juegos con M.2 dual, 8 etapas de potencia, Intel® WiFi 6, HDMI, DisplayPort, SATA 6Gbps, puerto USB 3.2 Gen 1 e iluminación Aura Sync RGB

• Socket Intel® LGA 1200: listo para procesadores Intel® Core ™ de décima generación
• Solución de potencia mejorada: 6 + 1 + 1 etapas de potencia, componentes TUF de grado militar y Digi + VRM para una máxima durabilidad
• Refrigeración completa: disipador térmico VRM, disipador térmico M.2, disipador térmico PCH
• Creado para juegos en línea: Intel® WiFi 6, Intel® Ethernet Connection I219-V, TUF LANGuard y tecnología Turbo LAN
• Códec Realtek S1200A: calidad de audio impecable con una relación señal / ruido de 108 dB sin precedentes para salida de línea estéreo y SNR de 103 dB para entrada de línea
• Iluminación Aura Sync RGB: efectos LED sincronizables en una amplia cartera de equipos de PC compatibles, incluidas tiras RGB direccionables

Especificaciones

• CPU
  • Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list
  • **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® B460
• Memory
  • 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem
  • * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  • Integrated Graphics Processor
  • 1 x DisplayPort 1.4 **
  • 1 x HDMI 1.4b
  • 1 x DVI-D
  • *Graphics specifications may vary between CPU types.
  • **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• Multi-GPU Support
  • Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  • Intel® 10th Gen Processors
  • 1 x PCIe 3.0 x16 (x16 mode)
  • Intel® B460 Chipset
  • 1 x PCIe 3.0 x16 (x4 mode)
  • 1 x PCIe 3.0 x1
• Storage
  • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  • Intel® B460 Chipset :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  • 6 x SATA 6Gb/s port(s)
  • Support Raid 0, 1, 5, 10
  • Intel® Rapid Storage Technology supports
  • Intel® Optane™ Memory Ready *2
• LAN
  • Intel® I219-V 1Gb Ethernet
• Wireless Data Network
  • Intel® Wi-Fi 6 AX200
  • 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  • Supports up to 2.4Gbps max data rate
  • Supports dual band frequency 2.4/5 GHz
  • Supports channel bandwidth: HT20/HT40/HT80/HT160
  • Supports PCIe interface
  • Bluetooth
  • Bluetooth v5.1*
  • *BT 5.1 function will be ready in Windows 10 build 19041 or later.
• Audio
  • Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC *
  • – Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature :
  • – Exclusive DTS Custom for GAMING Headsets.
  • – Audio cover
  • – Audio Shielding
  • – Dedicated audio PCB layers
  • – Premium Japanese audio capacitors
  • * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports
  • Rear USB Port ( Total 6 )
  • 4 x USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 port(s)(2 x Type-A)
  • Front USB Port ( Total 6 )
  • 2 x USB 3.2 Gen 1 port(s)
  • 4 x USB 2.0 port(s)
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • – Aura Creator
  • – Aura Sync
  • AI Suite 3
  • – Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • Digi+ VRM
  • Fan Xpert 2+
  • – EZ update
  • AI Charger
  • ASUS Turbo LAN
  • DTS Custom for GAMING Headsets
  • Norton Anti-virus software (Free Trial for 60 days)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
• ASUS Special Features
  • ASUS TUF PROTECTION
  • – ASUS DIGI+ VRM
  • – ASUS Enhanced DRAM Overcurrent Protection
  • – ASUS ESD Guards
  • – TUF LANGuard
  • – ASUS Overvoltage Protection
  • – SafeSlot Core+
  • – ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
  • – ASUS Q-DIMM
  • – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • – ASUS Q-Slot
  • ASUS Thermal Solution
  • – Aluminum M.2 heatsink
  • – Aluminum heatsink design
  • AURA Sync
  • – Standard RGB header(s)
  • – Addressable Gen 2 RGB header(s)
• Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.2 Gen 1 Type-A
  • 2 x USB 2.0
  • 3 x Audio jack(s)
  • 1 x ASUS Wi-Fi Module
• Internal I/O Ports
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 2 x Chassis Fan connector(s)
  • 2 x Aura RGB Strip Headers
  • 1 x Addressable Gen 2 header(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  • 6 x SATA 6Gb/s connector(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s) (Chassis intrusion header is inbuilt)
  • 1 x Clear CMOS jumper(s)
  • 1 x COM port header
• Accessories
  • User’s manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x Supporting DVD
  • 1 x TUF Gaming Sticker
  • 1 x TUF Certification card(s)
  • 1 x Wi-Fi moving antenna
  • 1 x M.2 SSD screw package(s)
  • 1 x M.2 Rubber Package(s)
• BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PXE
• Operating System
  • Windows® 10 64-bit
• Form Factor
  • mATX Form Factor
  • 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
