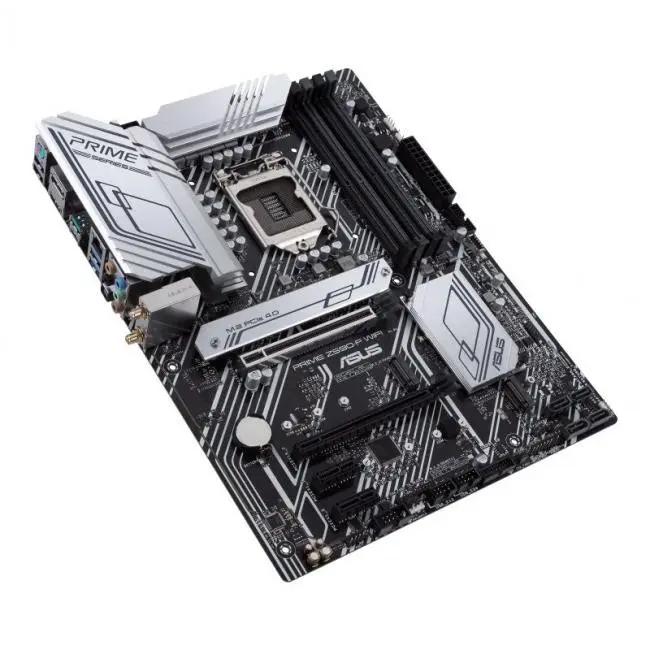

Asus Prime Z590-P Wifi

Las placas base de la serie ASUS Prime están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® Core ™ de décima y undécima generación. Con un diseño de energía robusto, soluciones de enfriamiento integrales y opciones de ajuste inteligentes, Prime Z590-P WIFI ofrece a los usuarios diarios y a los constructores de PC DIY una gama de opciones de ajuste de rendimiento a través de funciones de software y firmware intuitivos.

• Zócalo Intel® LGA 1200: listo para procesadores Intel® Core ™ de 11.a y 10.a generación
• Solución de potencia mejorada: etapas de potencia DrMOS 10 + 1, PCB de seis capas, conector ProCool de 8 pines, estranguladores de aleación y condensadores duraderos para una entrega de energía estable
• Refrigeración completa: grandes disipadores de calor VRM, disipador de calor M.2, disipador de calor PCH, cabezales de ventilador híbridos y Fan Xpert 4
• ASUS OptiMem II: enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa de tierra para preservar la integridad de la señal para mejorar el overclocking de la memoria
• Conectividad de próxima generación: Intel® WiFi 6, PCIe® 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, USB 3.2 Gen 1 Type-C® del panel frontal, soporte de encabezado Thunderbolt ™ 4

Especificaciones

• CPU
• Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
• Intel® Z590 Chipset
• Memory
• 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
• * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
• Graphics
• 1 x HDMI 2.0***
• * Graphics specifications may vary between CPU types.
• ** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
• *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
• Expansion Slots
• Intel® 11th & 10th Gen Processors*
• 1 x PCIe 4.0/3.0 x16 slot
• – Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
• – Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
• Intel® Z590 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)
• 2 x PCIe 3.0 x1 slots
• * Supports PCIe bandwidth bifurcation for RAID on CPU function.
• Storage
• Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® 11th Gen Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110
• – Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
• Intel® Z590 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
• To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
• * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
• Ethernet
• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard
• Wireless & Bluetooth
• Intel® Wi-Fi 6
• 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.0 or later
• USB
• Rear USB:Total 6 ports
• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB:Total 9 ports
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports*
• * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
• Audio
• Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
• – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• – Supports up to 24-Bit/192 kHz playback
• Audio Features
• – Audio Shielding
• – Rear optical S/PDIF out port
• – Premium Japanese audio capacitors
• – Dedicated audio PCB layers

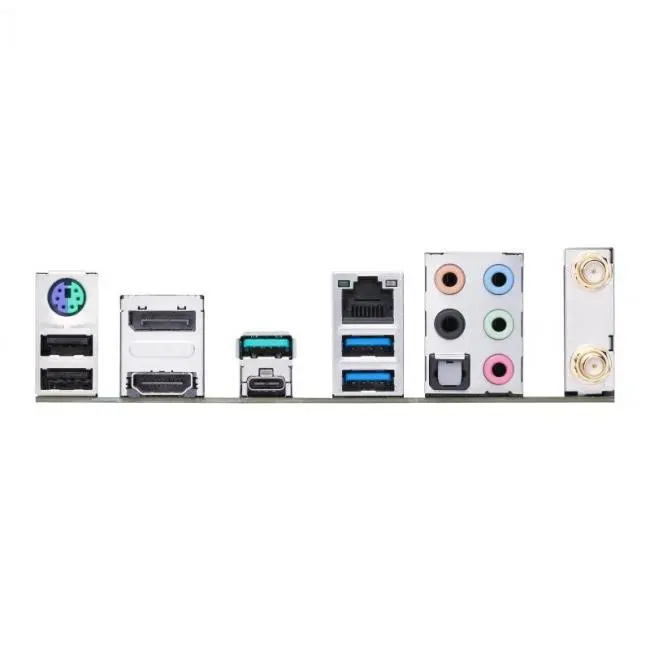

• Back Panel I/O Ports
• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x ASUS Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x PS/2 Keyboard/Mouse combo port
• Intrernal I/O Connectors
• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 2 x AURA Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-5pin System Panel header
• 1 x Thunderbolt™ header
• Special Features
• ASUS 5X PROTECTION III
• – DIGI+ VRM (- Digital power design with DrMOS)
• – LANGuard
• – Overvoltage Protection
• – SafeSlot Core+
• – Stainless-Steel Back I/O
• ASUS Q-Design
• – Q-DIMM
• – Q-Slot
• ASUS Thermal Solution
• – Flexible M.2 heatsink
• – VRM heatsink design
• ASUS EZ DIY
• – ProCool
• AURA Sync
• – AURA RGB headers
• – Addressable Gen 2 RGB headers
• Software Features
• ASUS Exclusive Software
• Armoury Crate
• – AURA Sync
• AI Suite 3
• – Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert 4
• – EZ update
• ASUS CPU-Z
• AI Charger
• DAEMON Tools
• MyASUS
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• – ASUS CrashFree BIOS 3
• – ASUS EZ Flash 3
• – ASUS UEFI BIOS EZ Mode
• BIOS
• 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability
• WOL by PME, PXE
• Accessories
• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x I/O Shield
• 1 x M.2 Rubber Package
• 2 x M.2 SSD screw packages
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User manual
• Operating System
• Windows 10 64bit
• Form Factor
• ATX
• 30.5cm x 23.4cm
