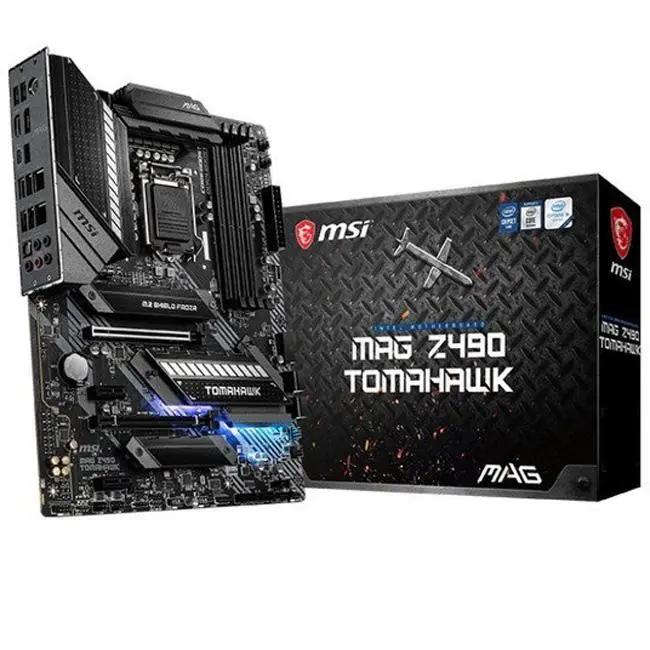

MSI MAG Z490 Tomahawk

La serie MAG nació a través de rigurosas pruebas de calidad y está diseñada para ser un símbolo de robustez y durabilidad. Centrada en proporcionar la mejor experiencia de usuario, la serie MAG tiene un proceso de instalación simple junto con una interfaz de usuario amigable que la convierte en la mejor opción para los jugadores de nivel básico.

Características

• Admite procesadores Intel® Core ™ / Pentium® Celeron® de décima generación para zócalo LGA 1200
• Admite memoria DDR4, hasta 4800 (OC) MHz
• Ready 4 the Future: soporte Lightning Gen 4 Solution para el futuro
• Solución térmica de primera calidad: el diseño de disipador térmico extendido y M.2 Shield Frozr están diseñados para un sistema de alto rendimiento y trabajos ininterrumpidos
• LAN 2.5G: Solución de red actualizada para uso profesional y multimedia. Ofrece una conexión de red segura, estable y rápida.
• Turbo M.2: la ejecución en PCI-E Gen3 x4 maximiza el rendimiento de los SSD basados en NVMe
• Lightning USB 20G: Desarrollado por el controlador ASmedia 3241 USB 3.2 Gen2x2, que ofrece velocidades de USB nunca antes vistas de hasta 20 Gb / s con USB Tipo-C
• Audio Boost: recompensa tus oídos con calidad de sonido de estudio
• Multi-GPU: con ranuras PCI-E de armadura de acero. Admite AMD Crossfire ™ de 2 vías

Especificaciones

• PROCESSOR
• Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2
• Please go to intel.com for compatibility information.Onboard graphics output are disabled when using the F SKU processors.
• CHIPSET
• Intel® Z490 Chipset
• MEMORY
• 4 x DDR4 memory slots, support up to 128GB 1
• Supports 1R 2133/2666/2933 MHz 1
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4266+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
• Please refer www.msi.com for more information on compatible memory.
• EXPANSION SLOT
• 1x PCIe 3.0 x16 slot (from CPU)
• 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)
• 2x PCIe x1 slots (from PCH)
• Please refer to page 29 for PCIe 3.0 bandwidth table.
• ONBOARD GRAPHICS
• 1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz
• 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
• MULTI-GPU
• Supports 2-Way AMD® CrossFire™ Technology
• STORAGE
• Intel® Z490 Chipset
• 6x SATA 6Gb/s ports 1
• 2x M.2 slots (Key M)
• M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
• M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2
• Intel® Optane™ Memory Ready 3
• Supports Intel® Smart Response Technology for Intel Core™ processors
• SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
• RAID
• Intel® Z490 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
• USB
• Intel® Z490 Chipset
• 1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel
• 7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector)
• 2x USB 2.0 ports on the back panel
• 4x USB 2.0 ports available through the internal USB connectors, hub-GL850G
• ASMedia® ASM3241
• 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
• AUDIO
• Realtek® ALC1200-VD1 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output
• LAN
• 1x Realtek® RTL8125B-CG 2.5G LAN Controller + 1x Intel I219V 1G LAN
• INTERNAL CONNECTORS
• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connectors (support additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water pump connector
• 6x 4-pin system fan connectors
• 1x front panel audio connector
• 2x system panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 2x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x serial port connector
• 1x TPM module connector
• 1x TBT connector 1
• Thunderbolt card need support RTD3
• BACK PANEL PORTS
• PS/2 Combo Port
• DisplayPort
• USB 3.2 Gen 2 10Gbps (Type-A)
• 1G LAN Port
• 2.5G LAN
• HD Audio Connectors
• USB 2.0 Ports
• HDMI Port
• USB 3.2 Gen 2×2 20Gbps (Type-C)
• USB 3.2 Gen 1 5Gbps (Type-A)
• USB 3.2 Gen 1 5Gbps (Type-A)
• Optical S/PDIF OUT
• MAG Z490 TOMAHAWK back panel ports
• DIMENSIONS
• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• MOUNTING
• 9 mounting holes
• OPERATING SYSTEM
• Support for Windows® 10 64-bit
