ASUS ROG STRIX B660-F GAMING WIFI

Placa base gaming ASUS ROG Strix B660-F WiFi Intel® LGA 1700 ATX, 16+1 etapas de alimentación, soporte DDR5, PCIe® 5.0, Wi-Fi 6, LAN de 2,5 Gb, tres ranuras M.2 con disipadores, placas posteriores M.2 y Aura Sync

Características:

• Compatible con los procesadores Intel® Core™, Pentium® Gold y Celeron® de 12.ª Gen.
• Solución Optimal Power: 16+1 etapas de alimentación con tomas ProCool, chokes de  aleación de alta calidad y condensadores resistentes para procesadores multinúcleo.
• Diseño térmico optimizado: Cubierta de E/S y disipadores VRM con almohadilla térmica de alta conductividad, tres disipadores M.2 y placas posteriores M.2.
• Redes de alto rendimiento: Intel Wi-Fi 6 (802.11ax) integrado y Ethernet Intel® de 2,5 Gb con ASUS LANGuard.
• La mejor conectividad para gaming: Soporta salida HDMI® 2.1 y DisplayPort™ 1.4, tres ranuras M.2 y USB 3.2 Gen. 2×2 de tipo C.
• Control inteligente: Funciones de refrigeración, redes y cancelación de ruido asistidas por IA para simplificar la configuración y mejorar el rendimiento.
• DIY fácil: M.2 Q-Latch, escudo de E/S, botón BIOS FlashBack™ y botón Clr CMOS.
• Personalización inigualable: Iluminación RGB Aura Sync exclusiva de ASUS con un conector RGB y tres direccionables de 2.ª generación.
• El sonido líder de la industria gaming: ALC4080 con amplificador Savitech SV3H712, DTS® Sound Unbound™ y Sonic Studio III.
• Software de calidad: Prueba gratuita AIDA64 Extreme de 60 días y el intuitivo panel de control UEFI BIOS con MemTest86.

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® 10 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® B660 Chipset
• Memory
  • 4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Support 8K@60Hz as specified in DisplayPort 1.4.
  • *** Support 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  • Intel® 12th Gen Processors*
  • 1 x PCIe 5.0 x16 slot (supports x16 mode)
  • Intel® B660 Chipset**
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)***
  • 2 x PCIe 3.0 x1 slots
  • * Please check PCIe bifurcation table in support site.
  • ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
  • *** The PCIEX16(G3) shares bandwidth with the PCIEX1(G3)_1 and PCIEX1(G3)_2. When either PCIEX1(G3) slot enables, PCIEX16(G3) will run x2 mode.
• Storage
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • Intel® B660 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  • ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6
  • 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth v5.2
• USB
  • Rear USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 ports (1 x Type-A)
  • 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • – Impedance sense for front and rear headphone outputs
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • – Supports up to 32-Bit/384 kHz playback
  • Audio Features
  • – SupremeFX Shielding Technology
  • – Savitech SV3H712 AMP
  • – Premium audio capacitors
  • – Audio cover

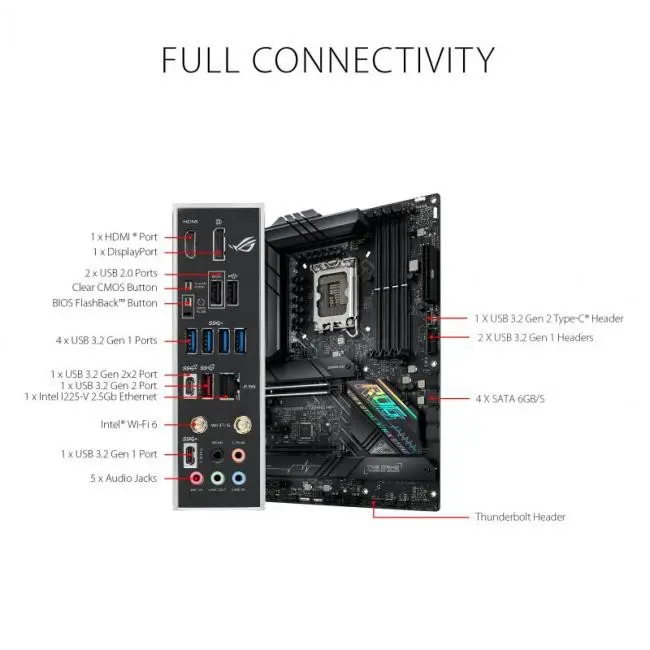

• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 ports (1 x Type-A)
  • 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® I225-V 2.5Gb Ethernet
  • 5 x Audio jacks
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x S/PDIF Out header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ header
  • Special Features
  • Extreme Engine Digi+
  • – 5K Black Metallic Capacitors
  • ASUS Q-Design
  • – M.2 Q-Latch
  • – Q-DIMM
  • – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • – Q-Slot
  • ASUS Thermal Solution
  • – M.2 heatsink backplate
  • – M.2 heatsink
  • ASUS EZ DIY
  • – BIOS FlashBack™ button
  • – BIOS FlashBack™ LED
  • – CPU Socket lever protector
  • – Clear CMOS button
  • – ProCool
  • – Pre-mounted I/O shield
  • – SafeSlot
  • – SafeDIMM
  • AURA Sync
  • – AURA RGB header
  • – Addressable Gen 2 RGB headers
• Software Features
  • ROG Exclusive Software
  • – GameFirst VI
  • – ROG CPU-Z
  • – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  • – Sonic Radar III
  • – DTS® Sound Unbound
  • – Anti-virus software
  • ASUS Exclusive Software
  • Armoury Crate
  • – AIDA64 Extreme (60 days free trial)
  • – AURA Creator
  • – AURA Sync
  • – Fan Xpert 4
  • – Two-Way AI Noise Cancelation
  • AI Suite 3
  • – Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • MyAsus
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
  • MemTest86
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 4 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x M.2 Rubber Package
  • 1 x M.2 Q-Latch package
  • 1 x M.2 Q-Latch package for M.2 backplate
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
• Installation Media
  • 1 x Support DVD
• Documentation
  • 1 x User manual
• Operating System
  • Windows® 10 64-bit, Windows® 11 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
