Asus Prime Z690-P Wifi D4

Las placas base de la serie ASUS Prime están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® de 12.ª generación. Con un diseño de energía robusto, soluciones de enfriamiento integrales y opciones de ajuste inteligentes, Prime Z690-P WIFI D4 ofrece a los usuarios y constructores de PC una gama de opciones de ajuste de rendimiento a través de funciones de software y firmware intuitivas.

Características:

• Zócalo Intel® LGA 1700: listo para procesadores Intel® de 12.a generación
• Solución de energía mejorada: 14 + 1 DrMOS, conector ProCool de 8 + 4 pines, estranguladores de aleación y capacitores duraderos para una entrega de energía estable
• Refrigeración completa: grandes disipadores de calor VRM, disipador de calor M.2, disipador de calor PCH, cabezales de ventilador híbridos y Fan Xpert 4
• ASUS OptiMem II: enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa de tierra para preservar la integridad de la señal para mejorar el overclocking de la memoria
• Conectividad de próxima generación: Intel® WiFi 6, DDR4, PCIe® 5.0, Ethernet de 2,5 Gb, USB 3.2 Gen 2×2 Type-C®, USB 3.2 Gen 1 Type-C® del panel frontal, soporte de encabezado Thunderbolt ™ 4

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Z690

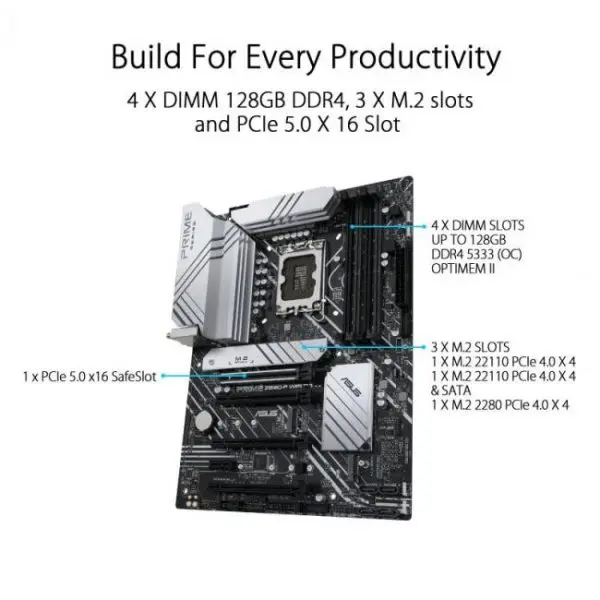

• Memory
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® Port***
  • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • **Supports max. [email protected] as specified in DisplayPort 1.4.
  • *** Supports [email protected] as specified in HDMI 2.1.
• Expansion Slots
  • Intel® 12th Gen Processors*
  • 1 x PCIe 5.0/4.0/3.0 x16 slot
  • Intel® Z690 Chipset**
  • 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
  • 2 x PCIe 3.0 x16 slots (support x4 mode)
  • 1 x PCIe 3.0 x1 slot
  • * Please check PCIe bifurcation table in support site.
  • ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
• Storage
  • Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110
  • – Intel® 12th Gen processors support PCIe 4.0 x4 mode.
  • Intel® Z690 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
  • ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
• Wireless & Bluetooth
  • Intel® Wi-Fi 6
  • 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth v5.2
• USB
  • Rear USB:Total 6 ports
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB:Total 9 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports*
  • * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
• Audio
  •  Realtek 7.1 Surround Sound High Definition Audio CODEC
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • – Audio Shielding
  • – Rear optical S/PDIF out port
  • – Premium audio capacitors
  • – Dedicated audio PCB layers
• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x PS/2 Keyboard/Mouse combo port
• Intrernal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-5pin System Panel header
  • 1 x Thunderbolt™ header
• Special Features
  • ASUS 5X PROTECTION III
  • – DIGI+ VRM (- Digital power design with DrMOS)
  • – LANGuard
  • – Overvoltage Protection
  • – SafeSlot
  • – Stainless-Steel Back I/O
  • ASUS Q-Design
  • – Q-DIMM
  • – Q-Slot
  • ASUS Thermal Solution
  • – Flexible M.2 heatsink
  • – VRM heatsink design
  • ASUS EZ DIY
  • – ProCool
  • AURA Sync
  • – AURA RGB headers
  • – Addressable Gen 2 headers
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • – AURA Sync
  • – Fan Xpert 4
  • AI Suite 3
  • – Performance And Power Saving Utility
  •   TurboV EVO
  •   EPU
  •   DIGI+ VRM
  • ASUS CPU-Z
  • MyASUS
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
• BIOS
  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 2 x M.2 SSD screw packages
• Installation Media
  • 1 x Support DVD
• Documentation
  • 1 x User guide
• Operating System
  • Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  • ATX
  • 30.5cm x 23.4cm
