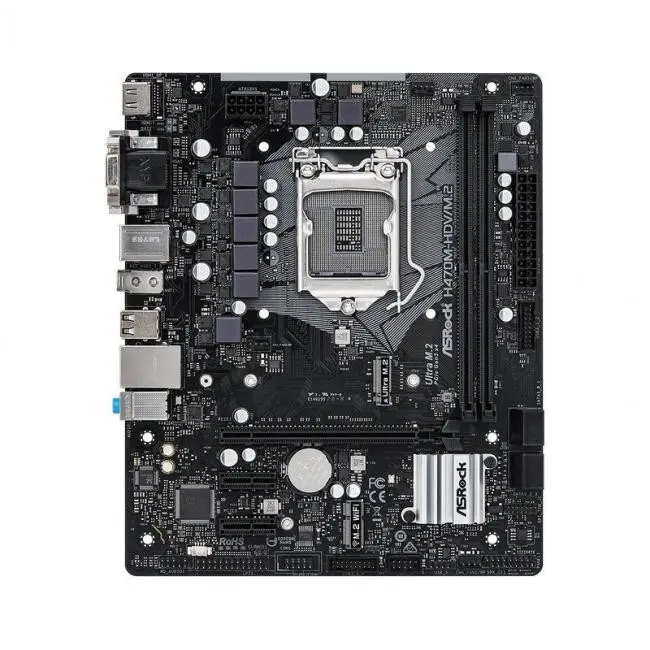

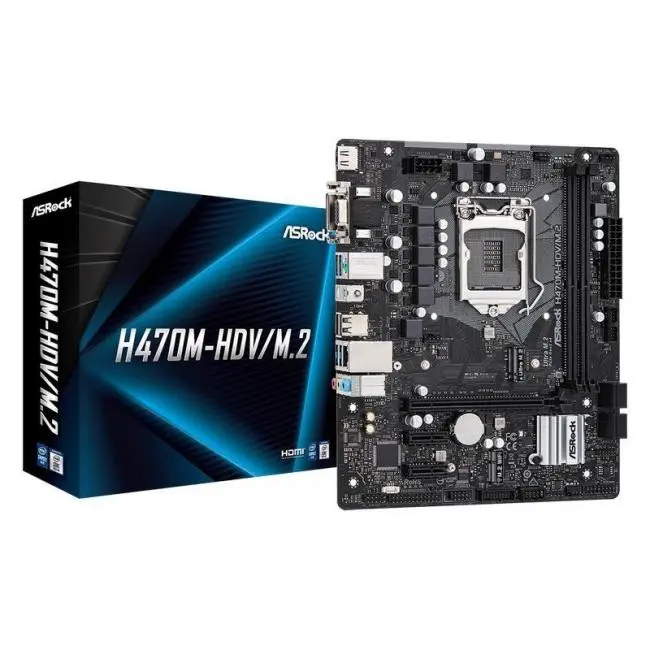

Asrock H470m-HDV/M.2

En comparación con los choques tradicionales, los choques de potencia premium 50A de ASRock hacen que la corriente de saturación sea hasta tres veces mejor, proporcionando así un voltaje Vcore mejorado a la placa base.

• Soporta Procesadores Intel® Core™ 10ª Gen (Socket 1200)
• Diseño de fase de alimentación 7
• Soporta memoria DDR4 2933 MHz
• 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E para WiFi
• Opciones de salida gráficos: HDMI, DVI-D, D-Sub
• Audio 7.1 canales HD (Códec de audio Realtek ALC887)
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 8 USB 3.2 Gen1 (4 Frontales, 4 Traseros)
• Intel® Gigabit LAN

Especificaciones

• Unique Feature
  ASRock Super Alloy
  – Premium 50A Power Choke
  – Sapphire Black PCB
  – High Density Glass Fabric PCB
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  – Supports 10th Gen Intel^® Core™ Processors (Socket 1200)
  – Digi Power design
  – 7 Power Phase design
  – Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  – Intel^® H470
• Memory
  – Dual Channel DDR4 Memory Technology
  – 2 x DDR4 DIMM Slots
  – Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  – Supports ECC UDIMM memory modules (operate in non-ECC mode)
  – Max. capacity of system memory: 64GB**
  – Supports Intel^® Extreme Memory Profile (XMP) 2.0
  – 15μ Gold Contact in DIMM Slots

  *Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 up to 2666.

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS
  – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  – ACPI 6.0 Compliant wake up events
  – SMBIOS 2.7 Support
  – CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment
• Graphics
  – Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
  – Graphics, Media & Compute: Microsoft^® DirectX 12, OpenGL 4.5, Intel^® Built In Visuals, Intel^® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  – Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft^® PlayReady 3.0, Intel^® SGX Content Protection, UHD Blu-ray Disc
  – Three graphics output options: D-Sub, DVI-D and HDMI
  – Supports Triple Monitor
  – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
  – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
  – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
  – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  – Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
  – Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  **VP9 10bit and VC-1 are for decode only.
  VP8 and VP9 encode are not supported by Windows^® OS.

• Audio
  – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  – Supports Surge Protection
• LAN
  – Gigabit LAN 10/100/1000 Mb/s
  – Giga PHY Intel^® I219V
  – Supports Wake-On-LAN
  – Supports Lightning/ESD Protection
  – Supports Energy Efficient Ethernet 802.3az
  – Supports PXE
• Slots
  – 1 x PCI Express 3.0 x16 Slot*
  – 2 x PCI Express 3.0 x1 Slots
  – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

  *Supports NVMe SSD as boot disks
• Storage
  – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
  – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

  *Supports Intel^® Optane™ Technology
  Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
• Connector
  – 1 x Print Port Header
  – 1 x COM Port Header
  – 1 x SPI TPM Header
  – 1 x Chassis Intrusion and Speaker Header
  – 1 x CPU Fan Connector (4-pin)*
  – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
  – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  **The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

  ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

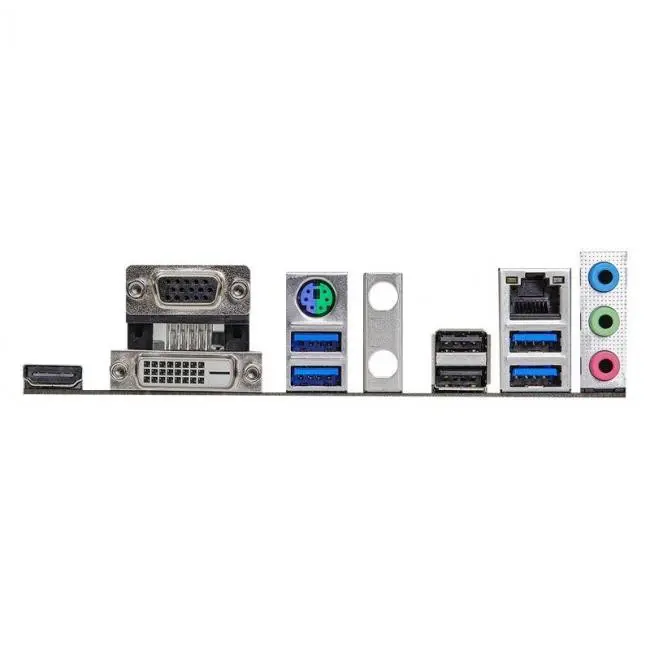

• Rear Panel I/O
  – 1 x Antenna Bracket
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x D-Sub Port
  – 1 x DVI-D Port
  – 1 x HDMI Port
  – 2 x USB 2.0 Ports (Supports ESD Protection)
  – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  – ASRock Motherboard Utility (A-Tuning)
  – ASRock XFast LAN
  UEFI
  – ASRock EZ Mode
  – ASRock Full HD UEFI
  – ASRock My Favorites in UEFI
  – ASRock Instant Flash
  – ASRock Internet Flash
  – ASRock Easy RAID Installer

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  – Quick Installation Guide, Support CD, I/O Shield
  – 2 x SATA Data Cables
  – 2 x Screws for M.2 Sockets
• Hardware Monitor
  – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
  – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  – CASE OPEN detection
  – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST
• Form Factor
  – Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
  – Solid Capacitor design
• OS
  – Microsoft^® Windows^® 10 64-bit
• Certifications
  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
